Documentation for RegattaCentral API
Definition Type: ComplexType
Name: TimingMilestones
Namespace: http://www.regattacentral.com/model
Containing Schema: rc-api.xsd
Abstract False

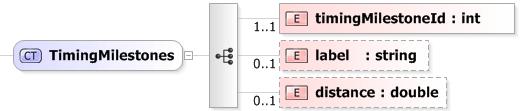

Collapse XSD Schema Diagram:
Drilldown into distance Drilldown into label Drilldown into timingMilestoneIdXSD Diagram of TimingMilestones
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="TimingMilestones">
    <xs:sequence>
        <xs:element name="timingMilestoneId" type="xs:int" minOccurs="1" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>Timing Milestones are currently limited to 5.   Id = 0 is the start; Id = 4 *must always be the finish*.
Id = 1, 2 or 3 are "mid-course".</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="label" minOccurs="0" maxOccurs="1">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="20" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="distance" type="xs:double" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
timingMilestoneId nsB:timingMilestoneId 1 1
label nsB:label 0 1
distance nsB:distance 0 1
Collapse Derivation Tree:
Collapse References:
nsB:milestones, nsB:splitLocation
