Documentation for RegattaCentral API
Definition Type: ComplexType
Name: Sponsor
Namespace: http://www.regattacentral.com/model
Containing Schema: rc-api.xsd
Abstract False

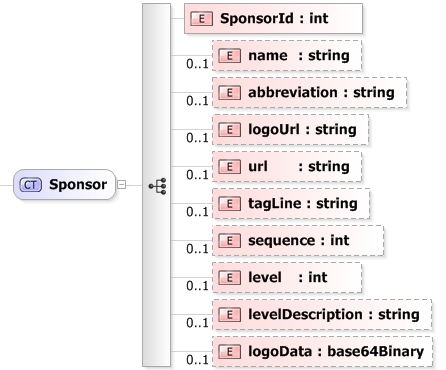

Collapse XSD Schema Diagram:
Drilldown into logoData Drilldown into levelDescription Drilldown into level Drilldown into sequence Drilldown into tagLine Drilldown into url Drilldown into logoUrl Drilldown into abbreviation Drilldown into name Drilldown into SponsorIdXSD Diagram of Sponsor
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="Sponsor">
    <xs:sequence>
        <xs:element name="SponsorId" type="xs:int" />
        <xs:element name="name" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="255" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="abbreviation" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="85" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="logoUrl" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="255" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="url" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="255" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="tagLine" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="255" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="sequence" type="xs:int" minOccurs="0" />
        <xs:element name="level" type="xs:int" minOccurs="0" />
        <xs:element name="levelDescription" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="50" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="logoData" type="xs:base64Binary" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SponsorId nsB:SponsorId (1) (1)
name nsB:name 0 (1)
abbreviation nsB:abbreviation 0 (1)
logoUrl nsB:logoUrl 0 (1)
url nsB:url 0 (1)
tagLine nsB:tagLine 0 (1)
sequence nsB:sequence 0 (1)
level nsB:level 0 (1)
levelDescription nsB:levelDescription 0 (1)
logoData nsB:logoData 0 (1)
Collapse Derivation Tree:
Collapse References:
nsB:sponsors
