Documentation for RegattaCentral API
Definition Type: ComplexType
Name: Regatta
Namespace: http://www.regattacentral.com/model
Containing Schema: rc-api.xsd
Abstract False

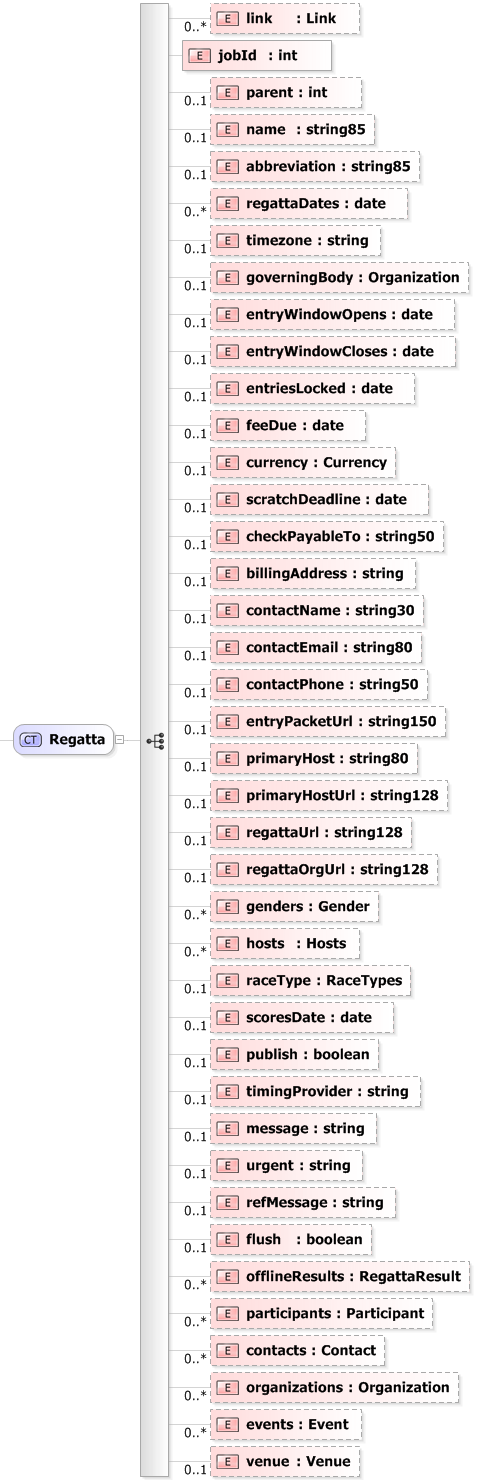

Collapse XSD Schema Diagram:
Drilldown into venue Drilldown into events Drilldown into organizations Drilldown into contacts Drilldown into participants Drilldown into offlineResults Drilldown into flush Drilldown into refMessage Drilldown into urgent Drilldown into message Drilldown into timingProvider Drilldown into publish Drilldown into scoresDate Drilldown into raceType Drilldown into hosts Drilldown into genders Drilldown into regattaOrgUrl Drilldown into regattaUrl Drilldown into primaryHostUrl Drilldown into primaryHost Drilldown into entryPacketUrl Drilldown into contactPhone Drilldown into contactEmail Drilldown into contactName Drilldown into billingAddress Drilldown into checkPayableTo Drilldown into scratchDeadline Drilldown into currency Drilldown into feeDue Drilldown into entriesLocked Drilldown into entryWindowCloses Drilldown into entryWindowOpens Drilldown into governingBody Drilldown into timezone Drilldown into regattaDates Drilldown into abbreviation Drilldown into name Drilldown into parent Drilldown into jobId Drilldown into linkXSD Diagram of Regatta
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="Regatta">
    <xs:sequence>
        <xs:element name="link" type="Link" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="jobId" type="xs:int" />
        <xs:element name="parent" type="xs:int" minOccurs="0" />
        <xs:element name="name" type="string85" minOccurs="0" />
        <xs:element name="abbreviation" type="string85" minOccurs="0" />
        <xs:element name="regattaDates" type="xs:date" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="timezone" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="governingBody" type="Organization" minOccurs="0" maxOccurs="1" />
        <xs:element name="entryWindowOpens" type="xs:date" minOccurs="0" maxOccurs="1" />
        <xs:element name="entryWindowCloses" type="xs:date" minOccurs="0" maxOccurs="1" />
        <xs:element name="entriesLocked" type="xs:date" minOccurs="0" maxOccurs="1" />
        <xs:element name="feeDue" type="xs:date" minOccurs="0" maxOccurs="1" />
        <xs:element name="currency" type="Currency" minOccurs="0" maxOccurs="1" />
        <xs:element name="scratchDeadline" type="xs:date" minOccurs="0" maxOccurs="1" />
        <xs:element name="checkPayableTo" type="string50" minOccurs="0" />
        <xs:element name="billingAddress" minOccurs="0" maxOccurs="1">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:maxLength value="270" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="contactName" type="string30" minOccurs="0" />
        <xs:element name="contactEmail" type="string80" minOccurs="0" />
        <xs:element name="contactPhone" type="string50" minOccurs="0" />
        <xs:element name="entryPacketUrl" type="string150" minOccurs="0" />
        <xs:element name="primaryHost" type="string80" minOccurs="0" />
        <xs:element name="primaryHostUrl" type="string128" minOccurs="0" />
        <xs:element name="regattaUrl" type="string128" minOccurs="0" maxOccurs="1" />
        <xs:element name="regattaOrgUrl" type="string128" minOccurs="0" maxOccurs="1" />
        <xs:element name="genders" type="Gender" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="hosts" type="Hosts" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="raceType" type="RaceTypes" minOccurs="0" />
        <xs:element name="scoresDate" type="xs:date" minOccurs="0" />
        <xs:element name="publish" type="xs:boolean" minOccurs="0" maxOccurs="1" />
        <xs:element name="timingProvider" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="message" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="urgent" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="refMessage" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="flush" type="xs:boolean" minOccurs="0" maxOccurs="1" />
        <xs:element name="offlineResults" type="RegattaResult" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Regattas which do not upload results directly to RegattaCentral may post URLs
that point to some result page in some format.   This array provides the user with
these links.

This array is only available when using the specific endpoint:

  /regatta/{jobId}/offlineResults
</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="participants" type="Participant" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="contacts" type="Contact" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="organizations" type="Organization" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="events" type="Event" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="venue" type="Venue" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
link nsB:link 0 unbounded
jobId nsB:jobId (1) (1)
parent nsB:parent 0 (1)
name nsB:name 0 (1)
abbreviation nsB:abbreviation 0 (1)
regattaDates nsB:regattaDates 0 unbounded
timezone nsB:timezone 0 1
governingBody nsB:governingBody 0 1
entryWindowOpens nsB:entryWindowOpens 0 1
entryWindowCloses nsB:entryWindowCloses 0 1
entriesLocked nsB:entriesLocked 0 1
feeDue nsB:feeDue 0 1
currency nsB:currency 0 1
scratchDeadline nsB:scratchDeadline 0 1
checkPayableTo nsB:checkPayableTo 0 (1)
billingAddress nsB:billingAddress 0 1
contactName nsB:contactName 0 (1)
contactEmail nsB:contactEmail 0 (1)
contactPhone nsB:contactPhone 0 (1)
entryPacketUrl nsB:entryPacketUrl 0 (1)
primaryHost nsB:primaryHost 0 (1)
primaryHostUrl nsB:primaryHostUrl 0 (1)
regattaUrl nsB:regattaUrl 0 1
regattaOrgUrl nsB:regattaOrgUrl 0 1
genders nsB:genders 0 unbounded
hosts nsB:hosts 0 unbounded
raceType nsB:raceType 0 (1)
scoresDate nsB:scoresDate 0 (1)
publish nsB:publish 0 1
timingProvider nsB:timingProvider 0 1
message nsB:message 0 1
urgent nsB:urgent 0 1
refMessage nsB:refMessage 0 1
flush nsB:flush 0 1
offlineResults nsB:offlineResults 0 unbounded
participants nsB:participants 0 unbounded
contacts nsB:contacts 0 unbounded
organizations nsB:organizations 0 unbounded
events nsB:events 0 unbounded
venue nsB:venue 0 (1)
Collapse Derivation Tree:
Collapse References:
nsB:regatta
